High Output Frequency I/F Conversion Circuit
Introduction
GSY-IFC-G10 is a high-precision current/frequency conversion circuit using charge integration. This conversion circuit can continuously convert the current signals output by three accelerometers at the same time. The three channels work independently without mutual influence. It has the characteristics of small volume, high output frequency and high precision.

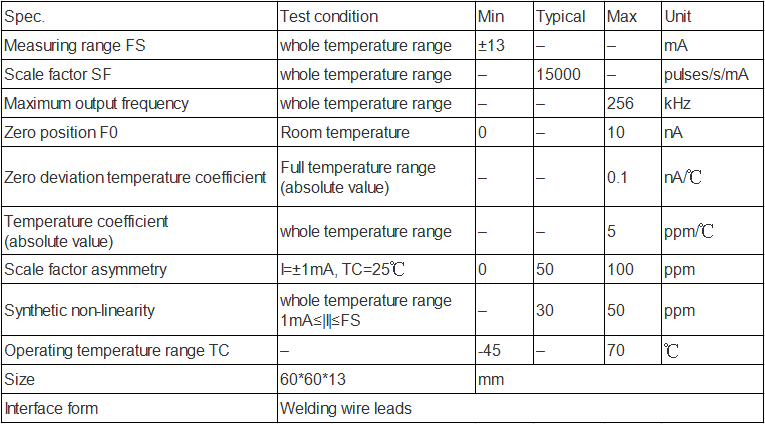

Specifications
Power supply: VCC=+15V±3%, VEE=-15V±3%, VDD=+5V±3%
Power supply requirements
| Items | Recommended range | Steady-state current | Internal capacitance value2 |
| +15 Power supply | +15V±3% | ≤0.10A | ≤50uF |
| -15V Power supply | -15V±3% | ≤0.10A | ≤50uF |
| +5V Power supply | +5V±3% | ≤0.20A | ≤50uF |
Connector pin definition
| No. | Name | Type | Details | To |
| 1 | Fclk | Output | 256kHz Synchronized square wave clock | Pulse acquisition board |
| 2 | F1A | Output | X channel pulse output A | Pulse acquisition circuit |
| 3 | F2A | Output | Y channel pulse output A | Pulse acquisition circuit |
| 4 | F1B | Output | X channel pulse output B | Pulse acquisition circuit |
| 5 | F2B | Output | Y channel pulse output B | Pulse acquisition circuit |
| 6 | F3A | Output | Z channel pulse output A | Pulse acquisition circuit |
| 7 | DGND | GND | +5V power supply, output pulse ground | DC/DC power panel |
| 8 | F3B | Output | Z channel pulse output B | Pulse acquisition circuit |
| 9 | AGND | GND | ±15V Power supply, input current ground | DC/DC power panel |
| 10 | VDD | Power supply | 5V power supply | DC/DC power panel |
| 11 | IZ | Input | Z-channel accelerometer input high end | Acceleromter |
| 12 | VEE | Power supply | -15V power supply | DC/DC power panel |
| 13 | IY | Input | Y-channel accelerometer input high end | Accelerometer |
| 14 | AGND | GND | ±15V Power supply ground | DC/DC power panel |
| 15 | IX | Input | X -channel accelerometer input high end | Accelerometer |
| 16 | VCC | Power supply | +15V power supply | DC/DC power panel |
