Voltage to Frequency Converter Module

Introduction

The GSY-VFC-30 voltage-to-frequency converter (VFC) is a powerful building block for precision analog-to-digital conversion, offering typical nonlinearity of 0.005% (0.01% maximum) at a 200 kHz output frequency. The module does not need to connect any additional components and can continuously convert three current signals at the same time.

Features

Ultra-low offset

Minimal nonlinear error

Adjustable current measurement range

No critical external components required

Low power consumption

Voltage or current input

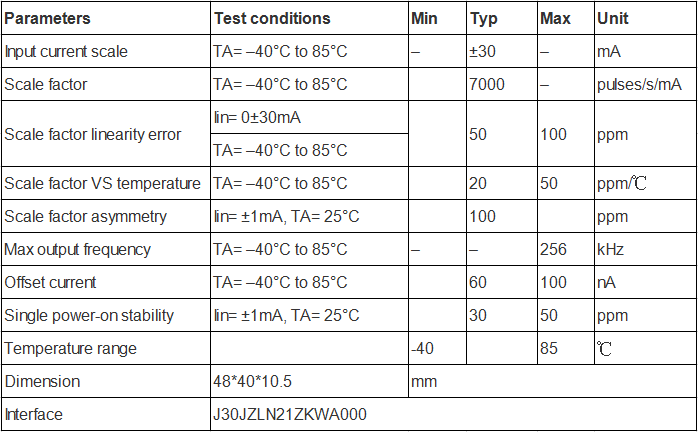

Electrical Characteristics

VCC=+15V±3%, VEE=-15V±3%, VDD=+5V±3%

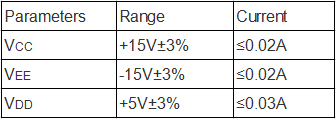

Power Supply

Pin Configuration and Functions

FAQ:

1. What are the quotation methods?

If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

2. Are there any discounts?

After we submit the sample price, if more quantity is needed, we will quote the bulk price.

3. How long will it take to deliver the goods after placing the order?

For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

4. How to deal with the quality problems?

After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

If interested in Voltage-to-Frequency Converter Module , pls contact us: info@joinsunny.cn
