40° Tilt Compensation – 3D Electronic Compass (Single Board)
GSY-EC-340:
1. Heading accuracy 1°;
2. Tilt range ±40°, accuracy 0.15°;
3. With hard magnetic, soft magnetic and tilt compensation.
80° Tilt Compensation-3D Electronic Compass
GSY-EC-385:
1. Heading accuracy 0.5°;
2. Tilt range ±80°, accuracy 0.1°;
3. With hard magnetic, soft magnetic and tilt compensation.
Digital Output-Full Attitude 3D Electronic Compass (Single Board)
GSY-EC-360B:
1. Heading accuracy 0.3~0.5°, resolution 0.1°;
2. Measurement range 0~360°;
3. Wide working temperature range -40~+85℃.
Digital Output-Full Attitude 3D Electronic Compass
GSY-EC-365B:
1. Heading accuracy 0.3~0.5°, resolution 0.1°;
2. Measurement range 0~360°;
3. Wide working temperature range -40~+85℃.

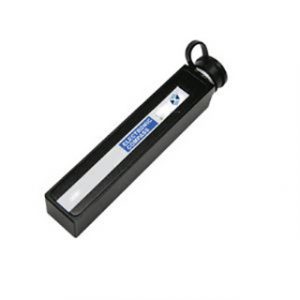

Analog Output-Full Attitude Three-Dimensional Electronic Compass
GSY-EC-365V:
1. Heading accuracy 0.3~0.5°, resolution 0.1°;
2. Measurement range 0~360°;
3. Wide temperature working -40~+85℃.
High-Precision CAN Bus Non-Contact Angle Sensor
GSY-AS-25 Features:
1. Output CAN bus;
2. Sampling rate: 1K HZ;
3. Full range accuracy 0.05°.
High-Precision RTK Positioning Module
GSY-GM-440 Features:
1. 30×40mm size, single-sided surface mount module;
2. RTK initialization time is better than 5s, supporting RTK calculation over 20km;
3. 20Hz high data output rate;
4. Adaptable to low-cost active ceramic antennas.
High-precision RTK Positioning and Orientation Module
GSY-GM-442 Features:
1. 30×40mm size, single-sided surface mount module;
2. RTK initialization time is better than 5s, support RTK solution above 20km;
3. 10Hz high data output rate.
Full System Full Frequency Point RTK Positioning Module
GSY-GM-4B0 Features:
1. New nebulas-II high-performance SoC chip;
2. Full system multi-frequency RTK;
3. Supports up to 20Hz data output rate;
4. Integrated 6-axis MEMS chip, autonomous integrated navigation.
High-precision Positioning and Orientation Module
GSY-GM-482 Features:
1. Adaptive recognition of differential input RTCM format;
2. Support BDS B1/B2+GPSL1/L2+GLONASS L1/L2+GALILEO E1/E5b+QZSS L1/L2;
3. Dual antenna input, support antenna signal detection MEMS onboard navigation.
GNSS Precision Timing Module
GSY-GM-220-III L Features:
1. BDS: 0.2 m/s;
2. Re-capture: <1s 1PPS 20ns;
3. Data update rate 1Hz;
4. Size 17×22.4×2.4mm.
BDS/GPS Dual-Mode Positioning Module
GSY-GM-220-III NV Features:
1. Size: 6.0×12.2×2.4mm;
2. Package: 24-pin, SMD surface mount;
3. Ulti-system joint positioning 1PPS support;
4. First time (TTFF): Cold start: 30s Sensitivity BDS GPS.

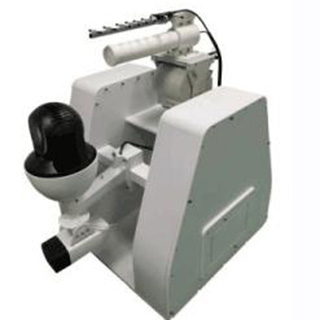

Low-altitude and Slow-speed Small Targets Defense System AUAV-Fixed
GSY-AUR-03:
1. Module design: product detection system adopting modular design, the system can be freely selected;
2. Main band suppression: detection and interference, covering the mainstream radio frequency band;
3. Standard city electricity: the equipment uses the standard 220V electricity, not power electric device.
