Low cost Digital Output Single Axis Tilt Sensor
Introduction
GSY-TS-4158DI Digital Single Axis Tilt Meter is a small volume MEMS uniaxial current output inclinometer sensor, the output current is 4~20mA, 0~20mA, 0~24mA optional. Due to the built-in micro-electromechanical production process inclination device, the product is small in size, low in power consumption, industrial-grade working temperature is -40~+85℃, and long-distance transmission can reach more than 2500 meters. The strong ability to resist external electromagnetic interference makes it suitable for long-term work in harsh industrial environments.
The product adopts non-contact measuring principle that can output the current attitude and inclination in real time, the accuracy can reach 0.1°. It is easy to use and no need to find the relative change of the two surface installation, which is the ideal choice of industrial equipment, platform attitude measurement.
Features
Full range accuracy 0.1°, resolution 0.01°
Output 4~20mA, 0~20mA, 0~24mA optional
Wide voltage input DC 9~36V
Wide temperature working -40~+85℃
Measuring range: 0~±180°(optional)
High vibration resistance >3500g
IP67 protection
Can output RS232 at the same time
Small volume (90*40*27mm) (customizable)

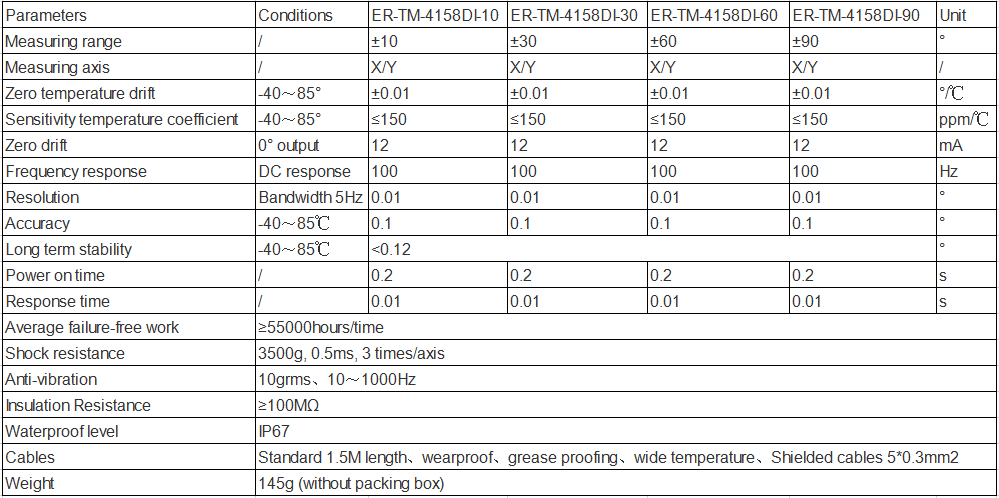

Specifications
Applications
Railway gauge
Satellite solar antenna positioning
Tractor, deep ploughing farm machine
Mining machinery, oil logging equipment
Medical equipment
Gimp leveling
Hydraulic lifting platform
Tilt based monitoring
Various construction machinery angle control
Inspection of bridges and dams
FAQ:
1. What are the quotation methods?
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
