High Precision Voltage Output Two-axis Tilt Sensor
Introduction
GSY-TS-4250VO series inclinometer is a small size and low-cost dual-axis inclination sensor developed by Join Sunny in response to the special requirements of the market for volume and cost. Due to the built-in tilt unit of the latest MEMS technology, it has achieved the characteristics of small size, low cost, consistency and stability. It is a cost-effective product that can work for a long time in the harsh environment of the industry.
The product adopts the principle of non-contact measurement and can output the current attitude angle in real time. It is easy to operate and has no opposite sides of the demand angle. It is an ideal choice for industrial automation control and platform measurement.
Features
Dual-axis tilt sensor measurement
Measuring range: ±90°
Output interface: 0-5V/0-10V
Wide voltage input: 12~35V
Product size: L90mm×W40mm×H27mm (customizable)
Highly anti-vibration performance >3500g
High resolution: 0.01°
Accuracy: 0.1°
Wide temperature operation -40~+85℃
IP67 protection
Applications
Industrial automatic leveling
Medical devices
The automatic tracking system of solar angle
Tower tilt monitoring
Special valves
Oil drilling equipment
Industrial converters
Crane tilt angle control

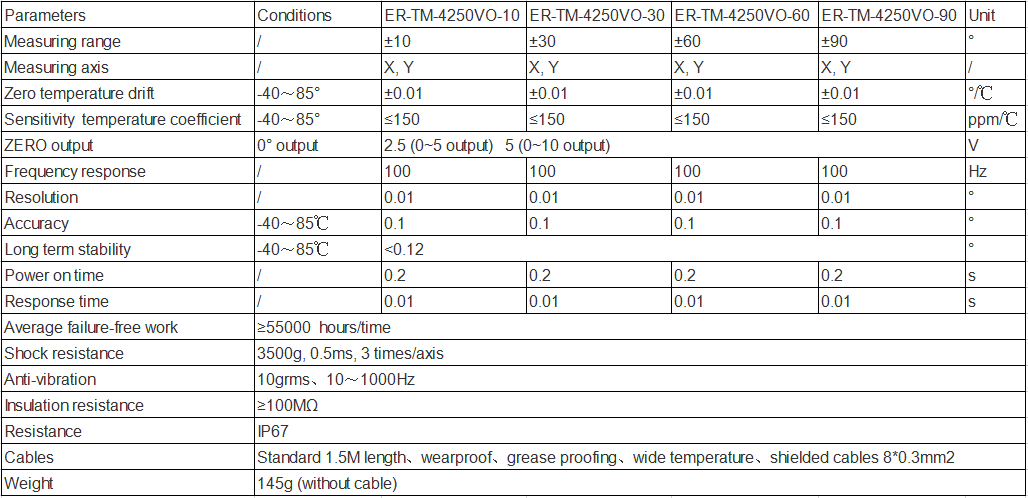

Specifications
This technical data only list ± 10 °, ± 30 °, ± 60 °, ± 90 ° series for reference, other measuring ranges please refer to the adjacent parameters.
FAQ:
1. What are the quotation methods?
If you have DHL or Fedex account , we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
If interested in High Precision Voltage Output Two-axis Tilt Sensor, pls contact us: info@joinsunny.cn
