CANopen Output Dual Axis Tilt Sensor
Introduction
GSY-TS-4255CA1 is a CAN open output dual axis tilt meter developed for industrial fields control. The latest MEMS production process tilt unit is built-in, which has the characteristics of small size and low power consumption. And the consistency and stability of the MEMS process is very high, and its working temperature can reach industrial grade -40℃~+85℃, which is a very cost-effective product-high tilt angle module.
The product uses non-contact measurement of the original quantity, and can output the current attitude inclination in real time. Simple to use, no need to retrieve the two surfaces of the phase change installation. In addition, it has strong resistance to external electromagnetic interference and can adapt to long-term work in harsh industrial environments, which is an ideal choice for industrial automation control and platform attitude measurement.
Features
Dual axis inclinometer
Full range accuracy 0.1°, resolution 0.01°
Output frequency 5~100HZ optional
Input voltage DC 5V
Wide temperature working -40~+85℃
Measuring range: 0~90°(optional)
High vibration resistance >3500 g
Baud rate 100K~500K bps
IP67 protection
Output: CANopen
Small volume (55*37*24mm) (customizable)
Applications
High voltage power line tower pole monitoring
Satellite solar antenna positioning
Aerial work vehicle
Mining machinery, oil logging equipment
Medical equipment
Gimp leveling
Hydraulic lifting platform
Tilt based monitoring
Various construction machinery angle control
Inspection of bridges and dams

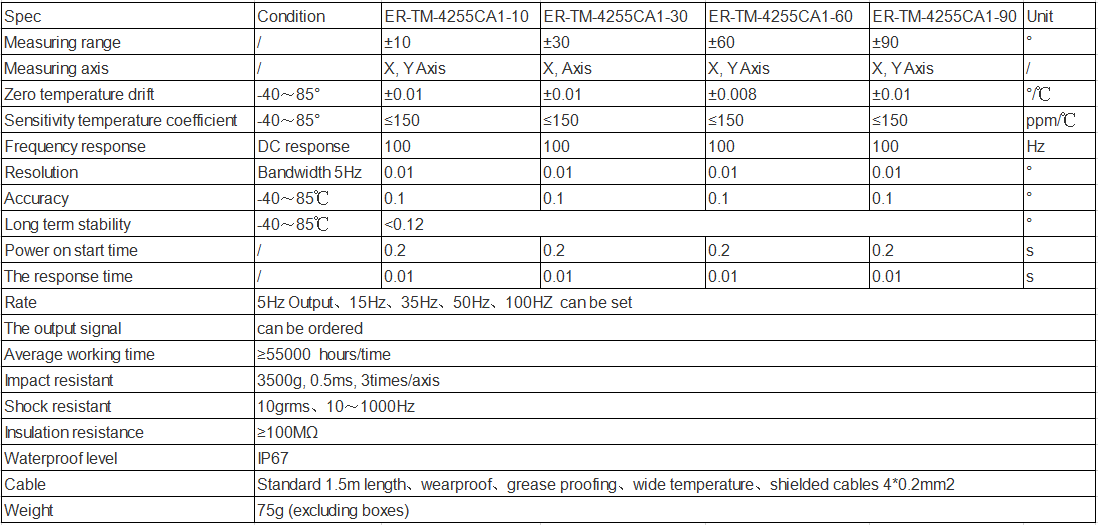

Specifications
FAQ:
1. What are the quotation methods?
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
If interested in CANopen Output Dual Axis Tilt Sensor, pls contact us: info@joinsunny.cn
