Digital Output Type Dual-Axis Tilt Sensor

Introduction

GSY-TS-4256DI is a new generation of digital small volume MEMS tilt sensor with built-in dual channel earth gravity tilt unit, which can be converted into inclination change by measuring static gravity acceleration. Thus the tilt and pitch angle of the sensor output relative to the horizontal plane can be measured. The output mode of RS232, RS485 or TTL and MODBUS level interface standard are optional. Due to the built-in MCU control system, the output linearity of the sensor can be modified twice, which makes up for the accuracy decline caused by insufficient correction in the analog model.

The product uses non-contact measurement of the original quantity, and can output the current attitude inclination in real time. Simple to use, no need to retrieve the two surfaces of the phase change installation. In addition, it has strong resistance to external electromagnetic interference and can adapt to long-term work in harsh industrial environments, which is an ideal choice for industrial automation control and platform attitude measurement.

Features

Biaxial tilt monitoring

Full range accuracy 0.1°, resolution 0.01°

Output frequency 5~100HZ optional

Input voltage DC 5V

Wide temperature working -40~+85℃

Low range 0~90 ° (optional)

High vibration resistance & GT: 3500 g

The baud rate is adjustable from 2400~115200

IP67 protection level

Output RS232/RS485/TTL/MODBUS (optional)

Small volume (55*37*24mm) (customizable)

Applications

High voltage power line tower pole monitoring

Satellite solar antenna positioning

Aerial work vehicle

Mining machinery, oil logging equipment

Medical equipment

Gimp leveling

Hydraulic lifting platform

Tilt based monitoring

Various construction machinery angle control

Inspection of bridges and dams

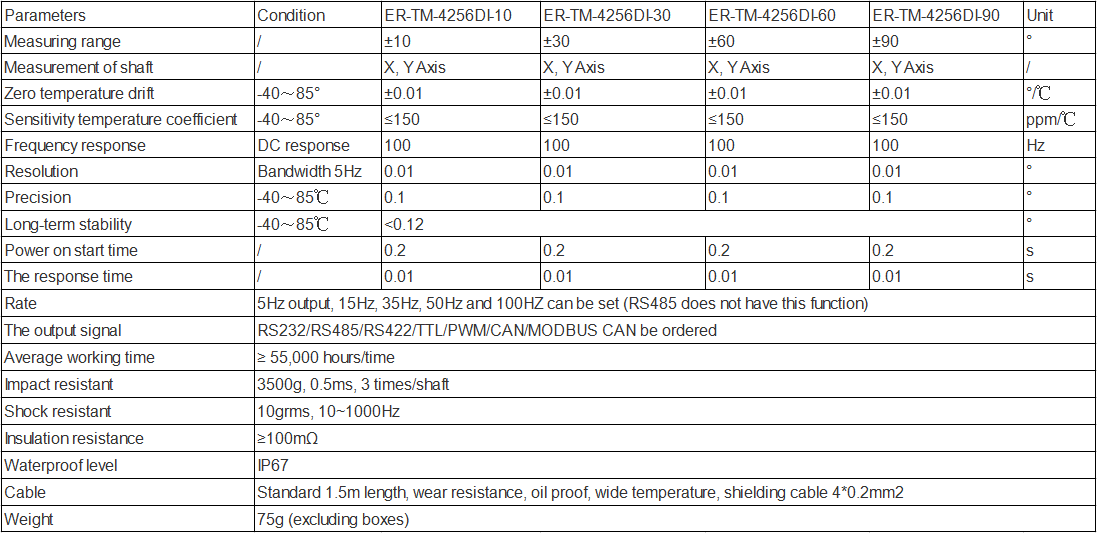

Specifications

FAQ:

1. What are the quotation methods?

If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

2. Are there any discounts?

After we submit the sample price, if more quantity is needed, we will quote the bulk price.

3. How long will it take to deliver the goods after placing the order?

For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

4. How to deal with the quality problems?

After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

If interested in Digital Output Type Dual-Axis Tilt Sensor, pls contact us: info@joinsunny.cn
