Small Size Digital Output Two Axis Tilt Sensor
Introduction
GSY-TS-4256DI1 is a new generation of digital small volume MEMS tilt meter, with built-in dual channel earth gravity tilt unit, which can be converted into inclination change by measuring static gravity acceleration. Thus the tilt and pitch angle of the sensor output relative to the horizontal plane can be measured. The output mode has RS232, RS485 or TTL, MODBUS level interface to choose from. Due to the built-in MCU control system, the output linearity of the sensor has been corrected twice to make up for the loss of accuracy caused by the lack of analog correction.
The product adopts non-contact measurement original quantity, which can output the current attitude inclination in real time. The operation is simple, and there is no need to retrieve the two sides of the change. It can resist external electromagnetic interference and adapt to harsh industrial environment for long-term work, so it is an ideal choice for industrial automation control and platform attitude measurement. It has strong resistance to external electromagnetic interference and can be adapted to work in harsh industrial environment for a long time.
Features
Biaxial tilt monitoring
Full range accuracy 0.1°, resolution 0.01°
Industrial grade design
Wide voltage input DC 9~36V
Wide temperature working -40~+85℃
Range 0~±90°(optional)
High vibration resistance & GT: 3500 g
The baud rate is adjustable from 2400~115200
IP67 protection level
Output RS232/RS485/TTL/MODBUS (optional)
Small volume (90*40*27mm) (customizable)
Applications
High voltage power line tower pole monitoring
Satellite solar antenna positioning
Tractor, deep tillage machinery
Mining machinery, oil logging equipment
Medical equipment
Gimp leveling
Hydraulic lifting platform
Tilt based monitoring
Various construction machinery angle control
Inspection of bridges and dams

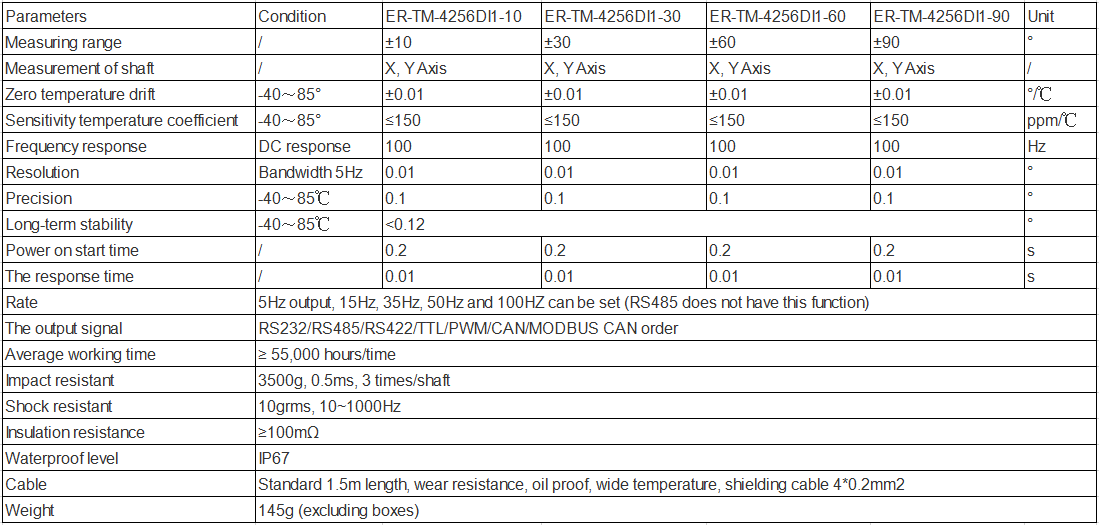

Specifications
FAQ:
1. What are the quotation methods?
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
