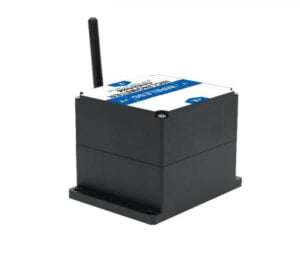

High Performance Wireless Transmission Tilt Sensor
Introduction
GSY-TS-32600-Modbus High Performance Wireless Transmission Tilt Sensor is a wireless inclination sensor with ultra-low power consumption, small size and high performance, which is aimed at the industrial application of users without power supply or real-time dynamic measurement of object attitude angle. Powered by lithium battery, based on Internet of things technology Bluetooth and ZigBee (optional) wireless transmission technology, all internal circuits have been optimized and designed, and various measures such as industrial MCU, three proof PCB board, imported cable, wide temperature metal shell are adopted to improve the industrial level of the product. With good long-term stability and small zero drift, it can automatically enter the low-power sleep mode, so as to get rid of the dependence on the use environment.
The product has compact structure, precise design, re compensation for temperature and linearity, and integrated comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, surge, etc. it is simple and convenient to use. The wireless digital signal transmission method eliminates the cumbersome wiring and noise interference caused by long cable transmission; The industrial design has extremely high measurement accuracy and anti-interference ability. The wireless sensor nodes can form a huge wireless network, support thousands of measuring points to monitor the inclination at the same time, and support professional computer software. Without field survey, it can measure and record the state of the measured object in real time; The safety monitoring system is suitable for remote real-time monitoring and analysis of industrial sites, dilapidated houses, ancient buildings, civil engineering, tilt deformation of various towers and other needs.
Features
Dual axis monitoring (single axis optional)
Range: double axis ±90°, single axis 180° (360° optional)
Accuracy: 0.01°, resolution: 0.002°
Volume (94*74*64mm) (customizable)
Ultra low power consumption
Built in rechargeable lithium battery for power supply
Wide temperature operation -40~+85℃
IP67 protection grade
Applications
Billboard monitoring
Bridge construction
Pan tilt leveling
Ship navigation attitude measurement
High speed railway subgrade tunnel monitoring
Satellite solar antenna positioning
Medical equipment
Angle control of various construction machinery
Specifications
| Parameter | Condition | GSY-TS-32600-Modbus | unit |
| Measuring range | ± 90 | ° | |
| Measuring axis | X, Y | ||
| Zero temperature drift | -40~85° | ±0.002 | °/ ℃ |
| Sensitivity temperature coefficient | -40~85° | ≤150 | ppm/℃ |
| Frequency response | DC response | 100 | Hz |
| Resolution | 0.002 | ° | |
| Accuracy | -40~85 ℃ | 0.01 | ° |
| Long term stability | -40~85 ℃ | <0.015 | ° |
| Power on start time | 0.2 | s | |
| Response time | 0.05 | s | |
| Wireless frequency | 2460mhz (default), 2405~2480 adjustable | ||
| Transmission distance | 1.6km | ||
| Built in battery capacity | 6000mAh | ||
| Average working time | ≥ 55000 hours / time | ||
| Impact resistance | 20000g, 0.5ms, 3 times / shaft | ||
| Anti vibration | 10grms, 10 ~ 1000Hz | ||
| Insulation resistance | ≥100m Ω | ||
| Waterproof grade | IP67 | ||
| Weight | 460g (excluding packing box) | ||
FAQ:
1. What are the quotation methods?
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
If interested in High Performance Wireless Transmission Tilt Sensor, pls contact us: info@joinsunny.cn
