Small Size Single Axis Tilt Sensor CANopen Output
Introduction
GSY-TS-3165CA CAN Single Axis Tilt Meter is an industrial control field for the introduction of CAN open output uniaxial tilt sensor, using industrial standard isolator CAN transceiver, built-in high-precision 16bitA/D differential converter, through N-order filtering algorithm, so that the sensor output relative to the horizontal plane tilt and pitching angle CAN be measured. The product built-in high precision temperature sensor from ADI can correct the temperature drift of the sensor according to the changes of the built-in temperature sensor to ensure high repeatability of the product in low and high temperature environments. The output response frequency standard is as high as 100Hz, making it suitable for various harsh industrial control environments.
Features
Single axis tilt monitoring
Full range accuracy 0.01°, resolution 0.001°
Output frequency 5~100HZ (optional)
Wide voltage input DC 9~36V
Wide temperature working -40~+85℃
Measuring range: 0~±90°(optional)
High vibration resistance>20000g
Baud rate 100K~500K bps
IP67 Protection
Output CAN open
Small volume (90*40*27mm) (customizable)

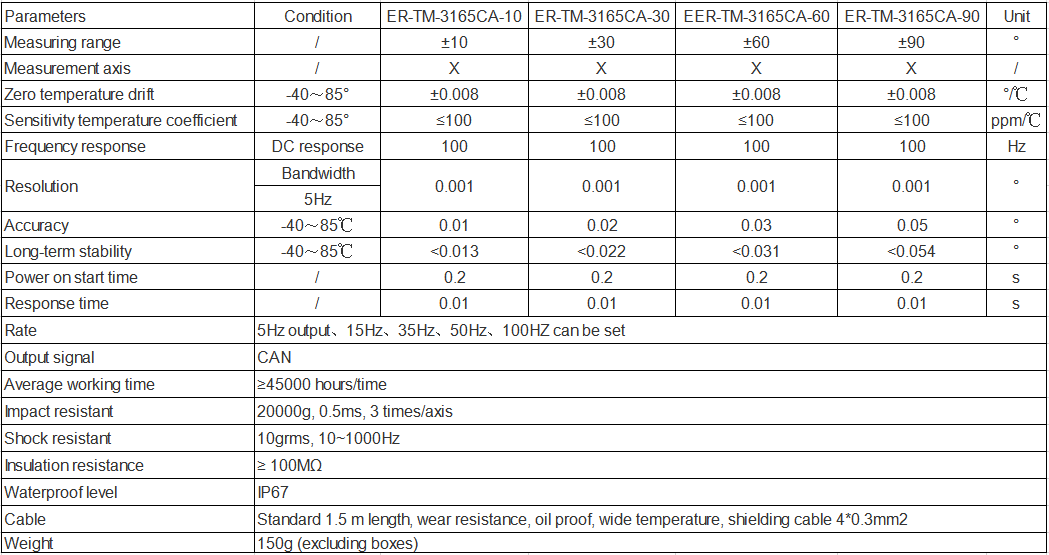

Specifications
Applications
High voltage power line tower pole monitoring
Satellite solar antenna positioning
Aerial work truck
Mining machinery, oil logging equipment
Medical equipment
Tilting leveling
Hydraulic lifting platform
Inclination monitoring
Angle control of various construction machinery
Bridges and DAMS, monitoring
FAQ:
1. What are the quotation methods?
If you have DHL or Fedex account , we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules : in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
If interested in CANopen Output Single Axis Tilt Sensor, pls contact us: info@joinsunny.cn
