Digital Type Two Axis Tilt Sensor

Introduction

GSY-TS-3266DI is a serial dual-axis inclinometer designed specifically for industrial control using MEMS technology and digital output. Built-in high-precision16bit A/Ddifferential converter, through N filtering algorithm, which can measure the angle of sensor output relative to the horizon taltilt and pitch tilt. The output interfaces RS485, RS232, RS422, TTL, CAN, MODBUS are optional.

The product is equipped with a high-precision digital sensor from ADI, which can correct the temperature drift of the sensor according to the monitoring temperature change of the built-in temperature sensor to ensure the repeatability of the product in low and high temperature environments. The corresponding output frequency is 100Hz. The finished product has reliable and stable performance, good scalability, and a variety of output options, which are suitable for various industrial control environments.

Features

Dual axis tilt monitoring

Full range accuracy 0.01°, resolution 0.001°

Output frequency 5~100HZ (optional)

Wide voltage input DC 9~36V

Wide temperature working -40~+85℃

Measuring range: 0~±90° (optional)

High vibration resistance >20000g

Baud rate 2400~115200 (adjustable)

IP67 protection

Can output RS232/RS485/TTL/MODBUS (optional)

Small volume (90*40*27mm) (customizable)

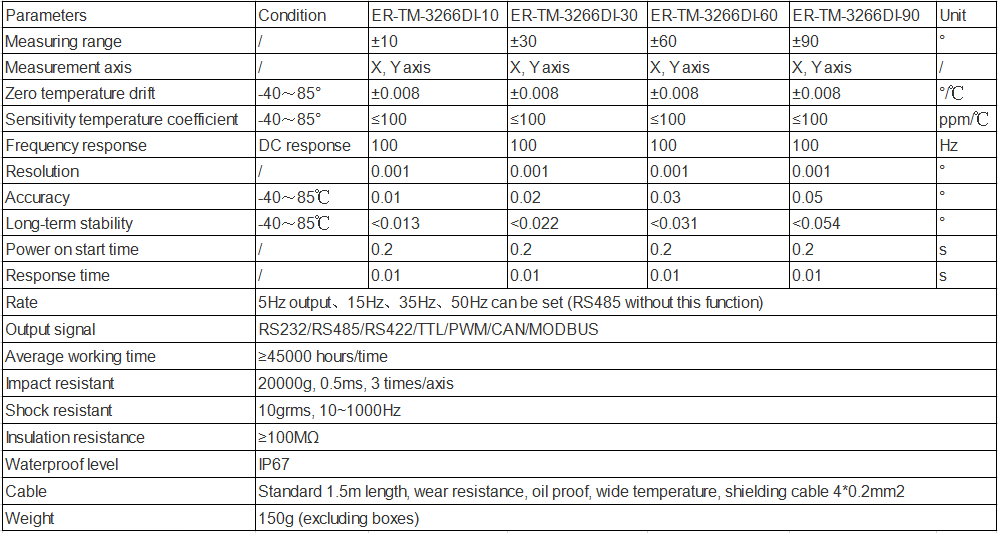

Specifications

Applications

Railway gauge ruler, gauge instrument

Satellite solar antenna positioning

AGV car

Mining machinery, oil logging equipment

Medical equipment

Tilting leveling

Hydraulic lifting platform

Inclination monitoring

Angle control of various construction machinery

Inspection of bridges and dams

FAQ:

1. What are the quotation methods?

If you have DHL or Fedex account , we can quote EXW price, otherwise CIF or FOB price.

2. Are there any discounts?

After we submit the sample price, if more quantity is needed, we will quote the bulk price.

3. How long will it take to deliver the goods after placing the order?

For sensors, parts and modules : in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

4. How to deal with the quality problems?

After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

If interested in Digital Type Two Axis Tilt Sensor, pls contact us: info@joinsunny.cn
