Current Output Type 2 Axis Tilt Sensor
Introduction
GSY-TS-3268CU is a standard industrial dual-axis current output tilt sensor. There are standard currents of 4-20mA, 0-20mA, 0-24mA to choose from, and it can transmit 2000 meters long distance.
The product adopts MEMS sensor production technology, which can accurately compensate and correct temperature errors and linear errors. It has the characteristics of high accuracy, small size, high packaging technology, strong vibration resistance, built-in anti-radio frequency and anti-electromagnetic interference circuits, which is especially suitable for underground applications in harsh industrial environments such as excavation machinery.
Features
Dual axis tilt monitoring
Full range accuracy 0.01°, resolution 0.001°
Output 4~20mA, 0~20mA, 0~24mA (optional)
Wide voltage input DC 9~36V
Wide temperature working -40~+85℃
Measuring range: 0~±90°(optional)
High vibration resistance >20000g
IP67 protection
Can output RS232 at the same time
Small volume (90*40*27mm) (customizable)
Applications
High voltage power line tower pole monitoring
Satellite solar antenna positioning
Aerial work truck
Mining machinery, oil logging equipment
Medical equipment
Tilting leveling
Hydraulic lifting platform
Inclination monitoring
Angle control of various construction machinery
Inspection of bridges and dams

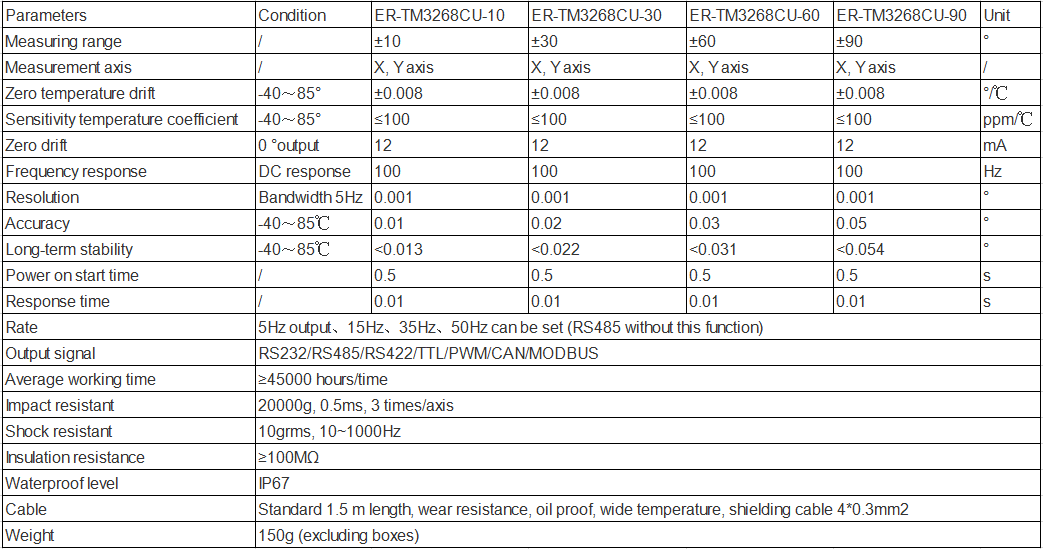

Specifications
FAQ:
1. What are the quotation methods?
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
If interested in Current Output Type Dual Axis Tilt Sensor, pls contact us: info@joinsunny.cn
