Two Axis Digital Output Tilt Sensor

GSY-TS-5278DI Features:
1. Two axis tilt monitoring;
2. Stable accuracy of 0.05°;
3. Dynamic measurement accuracy of 0.3°.

Two Axis Digital Output Tilt Sensor

Two Axis Digital Output Tilt Sensor

Get Price Now

    Two Axis Digital Output Tilt Sensor

    Introduction

    GSY-TS-5278DI digital two-axis inclinometer is a new generation of high-performance, small-sized, high-precision inclination sensor in complex movements. The dynamic measurement accuracy is 0.3°, the stability accuracy is 0.05°, and the temperature drift is 0.01°/℃. There are 4-20mA output modes, 0-20mA standard interface can be selected, easy to integrate into the user control system.

    The product has a built-in MCU control system, vertical gyroscope and accelerometer, and integrated attitude solver. Using the optimal digital filtering algorithm, noise reduction, with the N-order Kalman filtering algorithm, through nonlinear compensation, quadrature compensation, temperature drift and other compensation to eliminate error sources and improve measurement accuracy. It can accurately output objects in strong vibration and motion environment posture angle.

    Features

    Two axis tilt monitoring

    Dynamic measurement accuracy of 0.3°

    Stable accuracy of 0.05°

    Vertical gyroscope/N-order Kalman filter

    Input voltage DC 9~36V

    Wide temperature working -40~+85℃

    Range 0~±90°(optional)

    High nonlinear compensation

    Orthogonal compensation

    Temperature compensation

    Baud rate 2400~115200 (adjustable)

    Protection level IP67

    Output 4~20mA、0~20mA (optional)

    Small volume (60*59*29mm) (customizable)

    Applications

    Balance car

    Agricultural machinery, rotary drilling rig

    AGV car

    Mining machinery, oil logging equipment

    Medical equipment

    Tilting leveling

    Hydraulic lifting platform

    Inclination monitoring

    Angle control of various construction machinery

    Inspection of bridges and dams

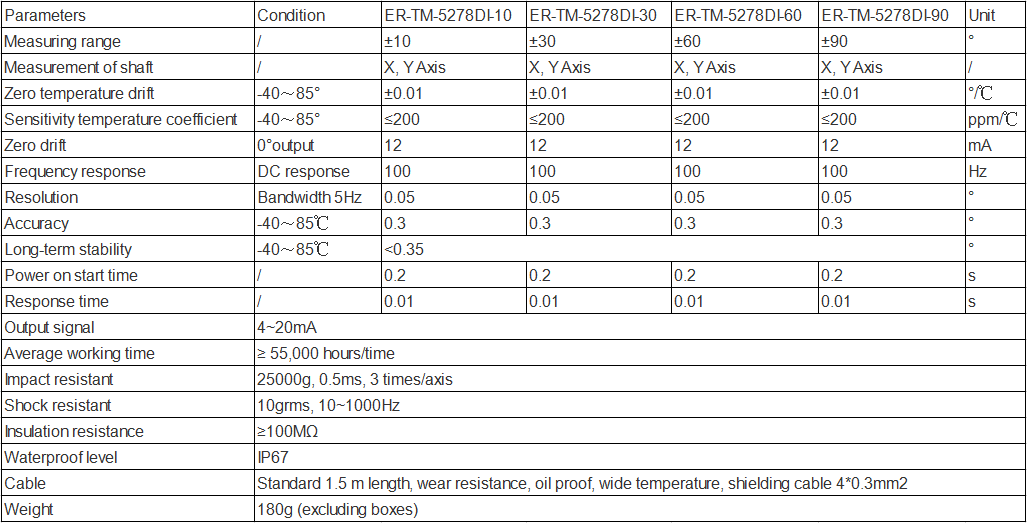

    Specifications

    FAQ:

    1. What are the quotation methods?

    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in Two Axis Digital Output Tilt Sensor, pls contact us: info@joinsunny.cn
