Quartz Accelerometer
Introduction

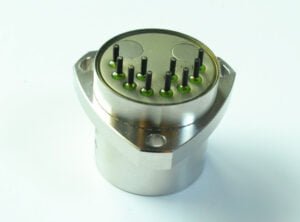

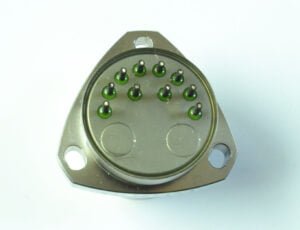

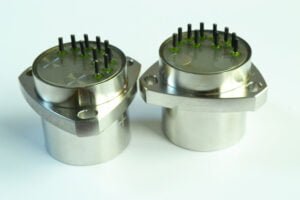

GSY-QA-03A High Performance Quartz Accelerometer with high reliability is mainly used in inertial measurement and test systems in the aerospace and aviation fields. It can carry out static test and dynamic test, which is a standard vibration sensor.
Specifications
| No. | Parameters | GSY-QA-03A1 | GSY-QA-03A2 | GSY-QA-03A3 | Unit |
| 1 | Range | ±50 | ±50 | ±50 | g |
| 2 | Threshold/Resolution | 5 | 5 | 5 | μg |
| 3 | Bias | ≤ (±3) | ≤ (±5) | ≤ (±7) | mg |
| 4 | Scale factor | 1.3±0.2 | 1.3±0.2 | 1.3±0.2 | mA/g |
| 5 | Class II non-linearity | ≤ (±20) | ≤ (±30) | ≤ (±30) | μg /g2 |
| 6 | Bias repeatability | ≤10 | ≤30 | ≤50 | μg |
| 7 | Factor scale repeatability | ≤15 | ≤30 | ≤50 | ppm |
| 8 | Class II non-linearity repeatability | ≤ (±10) | ≤ (±20) | ≤ (±30) | μg /g2 |
| 9 | Bias temp coefficient | ≤ (±10) | ≤ (±30) | ≤ (±50) | μg/℃ |
| 10 | Scale factor temp coefficient | ≤ (±20) | ≤ (±30) | ≤ (±50) | ppm /℃ |
| 11 | Noise | ≤5 | ≤8.4 | ≤8.4 | mv |
| 12 | Natural frequency | 400~800 | 400~800 | 400~800 | Hz |
| 13 | Bandwidth | 800~2500 | 800~2500 | 800~2500 | Hz |
| 14 | Vibration | 6g (20-2000Hz) | |||
| 15 | Shock | 100g, 5ms, 1/2sin | |||
| 16 | Operating temperature | -40~85 | -40~85 | -40~85 | ℃ |
| 17 | Temperature range | -60~120 | -60~120 | -60~120 | ℃ |
| 18 | Power Voltage | ±12~±15 | ±12~±15 | ±12~±15 | V |
| 19 | Current | ≤(±20) | ≤(±20) | ≤(±20) | mA |
| 20 | Temp. sensor | Yes and no two type | |||
| 21 | Size | Ф25.4X30 | Ф25.4X30 | Ф25.4X30 | mm |
| 22 | Weight | ≤80 | ≤80 | ≤80 | g |
Buy High Performance Quartz Accelerometer
FAQ:
1. What are the quotation methods?
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
ERICCO is a leading manufacturing expert and supplier of high-quality Quartz Accelerometer. We have a professional team waiting to cooperate with you.
If interested in High Performance Quartz Accelerometer, pls contact us: info@joinsunny.cn
