Current Type Triaxial Acceleration Sensor

Wide Range Quartz Accelerometer (±70g)

GSY-QA-03B:
1. Bias repeatability: 10-30ug;
2. Factor scale repeatability: 15-50ppm;
3. Class II non-linearity repeatability: 10-30μg/g2.

Inquiry Now

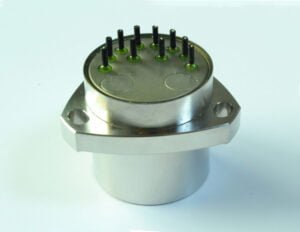

Wide Range Quartz Accelerometer (±70g)

Wide Range Quartz Accelerometer (±70g)

Get Price Now

    Download File
    Introduction

    GSY-QA-03B Wide-Range Quartz Accelerometer

    Introduction

    GSY-QA-03B Wide-Range Quartz Accelerometer for aerospace with wide-range, high accuracy, high reliability, not only can be used in aviation and aerospace inertial test but also in both static and dynamic acceleration measurement. In addition, the accelerometer uses a temperature sensor, which the operator can use to compensate bias and scale factor parameters to reduce the influence of temperature factors.

    Applications

    Flight control

    Stabilization

    Aircraft navigation systems

    Attitude heading reference systems (AHRS)

    Ground vibration testing (GVT)-wind tunnel testing

    Specifications

    No. Parameters GSY-QA-03B1 GSY-QA-03B2 GSY-QA-03B3
    1 Range ±70g ±70g ±70g
    2 Threshold/Resolution 5μg 5μg 5μg
    3 Bias ≤±3 mg ≤±3 mg ≤±5 mg
    4 Scale factor 0.8~1.5 mA/g 0.8~1.5 mA/g 0.8~1.5 mA/g
    5 Class II non-linearity ≤±10μg /g2 ≤±15μg /g2 ≤±20μg /g2
    6 Bias repeatability ≤10 μg ≤20 μg ≤30 μg
    7 Scale factor repeatability ≤15ppm ≤30 ppm ≤50 ppm
    8 Class II non-linearity repeatability ≤±10 μg/g2 ≤±20 μg/g2 ≤±30 μg/g2
    9 Bias temp coefficient ≤±10 μg/℃ ≤±30 μg/℃ ≤±50 μg/℃
    10 Scale factor temp coefficient ≤±10 ppm/℃ ≤±30 ppm/℃ ≤±50 ppm/℃
    11 Noise ≤5mv ≤5mv ≤5mv
    12 Natural frequency 400~800 Hz 400~800 Hz 400~800 Hz
    13 Bandwidth 800~2500 Hz 800~2500 Hz 800~2500 Hz
    14 Vibration 6g (20-2000Hz) 6g (20-2000Hz) 6g (20-2000Hz)
    15 Shock 100g, 5ms, 1/2sin 100g, 5ms, 1/2sin 100g, 5ms, 1/2sin
    16 Operating temperature -55~+85℃ -55~+85℃ -55~+85℃
    17 Storage temperature -60~+120℃ -60~+120℃ 60~+120℃
    18 Power ±12~±15V ±12~±15V ±12~±15V
    19 Consume current ≤±20mA ≤±20mA ≤±20mA
    20 Size Ф25.4X30mm Ф25.4X30mm Ф25.4X30mm
    21 Weight ≤80g ≤80g ≤80g

    FAQ:

    1. What are the quotation methods?

    If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

    2. Are there any discounts?

    After we submit the sample price, if more quantity is needed, we will quote the bulk price.

    3. How long will it take to deliver the goods after placing the order?

    For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

    4. How to deal with the quality problems?

    After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

    If interested in Wide-Range Quartz Accelerometer For Aerospace, pls contact us: info@joinsunny.cn
