Join Sunny released new products Stable Control MEMS IMU, GSY-MIMU-03 and GSY-MIMU-07.
Join Sunny’s MEMS IMU GSY-MIMU-03 and GSY-MIMU-07 both contain 3 high-precision advanced MEMS gyroscopes and 3 high-performance accelerometers and are capable of operating over a wide temperature range with excellent shock resistance.
GSY-MIMU-03 and GSY-MIMU-07 can output the angular velocity, acceleration, and temperature values of the gyroscope and accelerometer X, Y, and Z axis in raw hexadecimal complement data. and floating point dimensionless values of the gyroscope and accelerometer processed by the underlying computation. The user can select one of them as user data through the communication protocol.

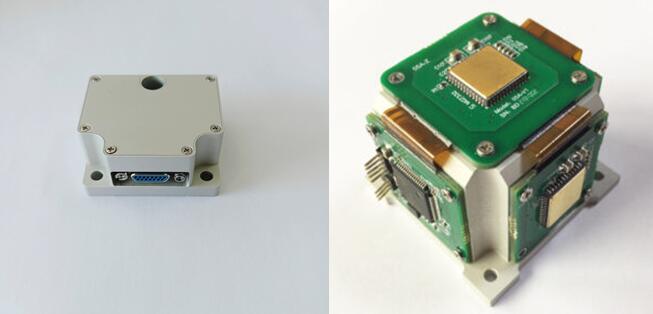

GSY-MIMU-03 GSY-MIMU-07
Similarity
1. 3-axis gyroscope & 3-axis accelerometer;
2. Gyro bias instability < 0.3º/h;
3. Gyro bias stability (10s 1σ) < 3º/h;
4. Measuring range 400º/s;
5. 5V power supply, low power consumption of 1.0W;
6. Operate Temp: -45℃~+ 85℃;
Difference
The size of GSY-MIMU-03 is 38.6×44.8×21.8mm, and the other GSY-MIMU-07 is 43.2×43.2 ×35mm. Both of them weigh less than 60g.
Application areas
General Aviation / Flight Control
AHRS (Attitude Heading Reference System)
GPS-aided Navigation
Autonomous and Remotely Operated Vehicles
Mining
The above information about MEMS IMU is provided by our engineers. If you want to get the quotation and more technical data, please feel free to contact us.
