GSY-MINS-5610 MEMS Inertial/Satellite Integrated Navigation System
Introduction
This MEMS inertial/satellite integrated navigation system is equipped with MEMS gyroscope and accelerometer and mapping multi-mode multi-frequency GNSS receiver. It can achieve a single antenna dynamic alignment or dual antenna-assisted fast high-precision orientation, and the directional accuracy can reach up to 0.1 deg.
This product is equipped with a new integrated navigation and fusion algorithm engine. Making use of the SFE for GNSS occlusion, multi-path interference to optimize the design, it can be used in cities, canyons and other complex environments to meet the requirements of long time, high precision, high reliability navigation application.
The product can support GNSS/odometer/DVL/barometric altimeter and other sensors external, with excellent scalability. Through the use of multi-sensor data fusion technology, and the combination of the inertial measurement and phase, it can make the system have geographical adaptability and robustness greatly improved. The product can meet the application requirements of marine surveying and mapping and map surveying, matching the original data storage, the level of surveying and mapping, and the post-processing software for surveying and mapping navigation. Users can match according to their needs.
Features
Serial port reads IMU and GNSS data
Combined navigation function, real-time calculation of the carrier’s location, speed, heading and attitude and other information
Support GNSS real-time RTK function, able to store post-processing data
Provide standardized user general agreement to support the user according to their own needs
Two RS232 and RS422 serial interfaces are available to enhance the standardization and versatility of product features

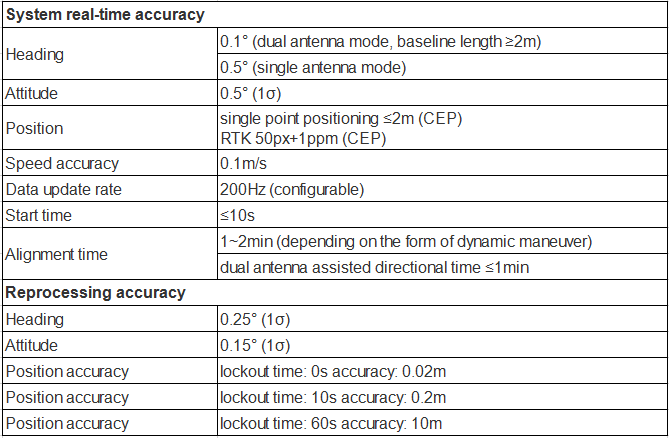

Specifications
Applications
FAQ:
1. What are the quotation methods?
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
If interested in MEMS Inertial/Satellite Integrated Navigation System, pls contact us: info@joinsunny.cn
