GSY-MG-067 High Performance MEMS Gyro
Introduction
The GSY-MG-067 High-accuracy & Low-cost MEMS Gyro is a single-axis MEMS angular rate sensor, which can measure the maximum angular velocity of ±400°/s, and the digital output conforms to SPI slave mode 3 protocol. Angular rate data is presented as a 24-bit word.
GSY-MG-067 is intended for industry, instrumentation, stabilization, and other high performance applications. The advanced differential sensor design can suppress the influence of linear acceleration, so that the GSY-MG-067 can operate even in extremely harsh environments such as shock and vibration.

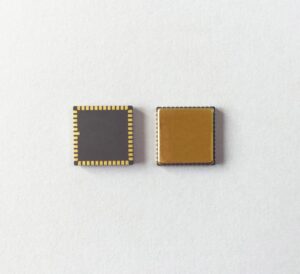

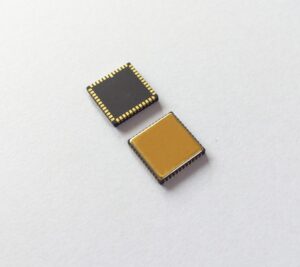

The GSY-MG-067 is available in a hermetically sealed ceramic LCC surface mount package, and is capable of operating at 5V supply and a wide temperature range (−50°C to +85°C).
Features
Proven and robust silicon MEMS gyro
Up to ±400°/s measurement range
0.3°/hr bias instability
0.125°/√hr angular random walk
Digital output (SPI slave)
5V operation (4.75~5.25V supply)
Low power consumption (35 mA)
High shock and vibration rejection
Hermetically sealed ceramic LCC surface mount package (11x11x2mm)
Integrated temperature sensor
RoHS compliant
Applications
Precision instrumentation, stabilization
Guidance, navigation, control
Avionics, unmanned vehicles
Precision autonomous machines, robotics
Specifications
| Parameters | 067C1 | Unit |
| Range | 400 | deg/s |
| Resolution | 24 | bits |
| Data rate | 12K | Hz |
| Group delay | <1.5 | ms |
| Bandwidth (-3dB) | 250 | Hz |
| Scale factor at 25°C | 16000 | lsb/deg/s |
| Scale factor repeatability (1σ) | <50 | ppm |
| Scale factor VS temperature (1σ) | 300 | ppm |
| Scale factor non-linearity (1σ) | <300 | ppm |
| Bias instability | <0.3 | deg/hr |
| Bias stability (1σ 10s) | <3 | deg/hr |
| Bias stability (1σ 1s) | <9 | deg/hr |
| Bias repeatability (1σ) | <1 | deg/hr |
| Angular random walk | <0.15 | °/ √h |
| Bias error over temperature (1σ) | 50 | deg/Hr |
| Bias temperature variations, calibrated (1σ) | <10 | deg/Hr |
| Noise peak to peak | ±0.20 | deg/s |
| G-sensitivity | <1 | °/hr/g |
| Vibration rectification error | <1 | °/hr/g (rms) |
| Startup time | 1 | s |
| Sensor resonant frequency | 11K~13K | |
| Environment, power and physical | ||
| Shock (operating) | 500g, 1ms, half sine wave | |
| Shock (survival) | 10000g, 1.0ms, half sine wave | |
| Vibration (operating) | 12grms, 20Hz to 2KHz random vibration | |
| Operating temperature | -45°C~85°C | |
| Max storage (survival) temperature | -55°C~125°C | |
| Supply voltage | 5±0.25V | |
| Current consumption | 40mA | |
