GSY-MG2-300/400 High Precision Navigation MEMS Gyroscope
Introduction
The GSY-MG2-300/400 High Precision Navigation MEMS Gyroscope is a single-axis MEMS angular rate sensor (gyroscope), which can measure the maximum angular velocity of ±400°/s, and the digital output conforms to SPI slave mode 3 protocol. Angular rate data is presented as a 24-bit word.
The GSY-MG2-300/400 is intended for navigation, and other high performance applications. Advanced differential sensor design rejects the influence of linear acceleration, enabling the GSY-MG2-300/400 to operate in exceedingly harsh environments where shock and vibration are present.

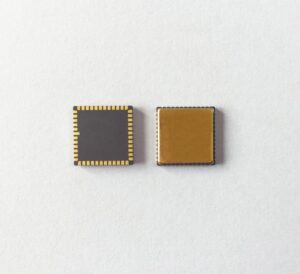

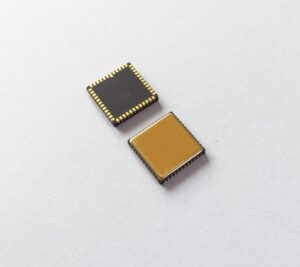

The GSY-MG2-300/400 is available in a hermetically sealed ceramic LCC surface mount package, and is capable of operating at 5V supply and a wide temperature range (−50°C to +85°C).
Features
Proven and robust silicon MEMS gyro
Up to ±400°/s measurement range
0.03°/hr bias instability
0.01°/√hr angular random walk
Digital output (SPI slave)
5V operation (4.75~5.25V supply)
Low power consumption (40 mA)
High shock and vibration rejection
Hermetically sealed ceramic LCC surface mount package (11x11x2mm)
Integrated temperature sensor
RoHS compliant
Specifications
| Parameters | GSY-MG2-300 | GSY-MG2-400 | Unit |
| Range | 300 | 400 | deg/s |
| Resolution | 24 | 24 | bits |
| Data rate | 12K | 12K | Hz |
| Group delay | <5 | <3 | ms |
| Bandwidth (-3dB) | 50 | 100 | Hz |
| Scale factor at 25°C | 28000 | 20000 | lsb/deg/s |
| Scale factor repeatability (1σ) | <50 | <20 | ppm |
| Scale factor VS temperature (1σ) | 300 | 100 | ppm |
| Scale factor non-linearity (1σ) | <300 | 100 | ppm |
| Bias instability | 0.03 | 0.05 | deg/hr |
| Bias stability (1σ 10s) | 0.15 | <0.5 | deg/hr |
| Bias stability (1σ 1s) | 0.5 | <1.5 | deg/hr |
| Bias repeatability (1σ) | <0.3 | <0.3 | deg/hr |
| Angular random walk | <0.01 | <0.025 | °/√h |
| Bias error over temperature (1σ) | 10 | 3 | deg/Hr |
| Bias temperature variations, calibrated (1σ) | <1 | <0.5 | deg/Hr |
| Noise peak to peak | ±0.010 | ±0.05 | deg/s |
| G-sensitivity | <1 | <1 | °/hr/g |
| Vibration rectification error | <1 | <1 | °/hr/g(rms) |
| Startup time | 1 | 1 | s |
| Sensor resonant frequency | 11K~13K | ||
| Environment, power and physical | |||
| Shock (operating) | 500g, 1ms, half sine wave | ||
| Shock (survival) | 10000g, 1.0ms, half sine wave | ||
| Vibration (operating) | 12grms, 20Hz to 2KHz random vibration | ||
| Operating temperature | -45°C~85°C | ||
| Max storage (survival) temperature | -55°C~125°C | ||
| Supply voltage | 5±0.25V | ||
| Current consumption | 40mA | ||
