Brushless Electric Motor
Introduction
The series Brushless Electric Motor, brushless torque motor adopts the rare earth cobalt permanent magnet excitation system, which is widely used as an actuator in automatic control systems. It can also be used as a drive element because the series of motors are small in size, light in weight, high in power density per unit volume, and high in canning index.
Features
Environment temperature: -40℃~+70℃
Air relative humidity: ≤95% (25℃)
The salt spray, mold
Satisfy the requirement of GJB1863-94
Specifications
Brushless motor

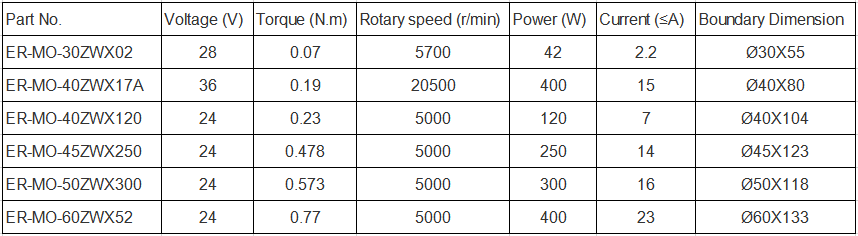

ER30~ER60ZWX Technical data

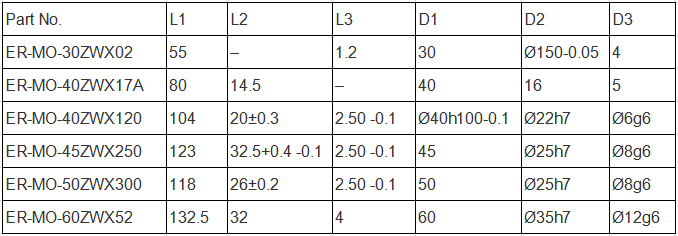

ER30~ER60ZWX Outline overall and installing dimensions
45ZWX800Technical data, appearance and installation dimensions
80ZW06 Balanced car dedicated motor technical data, appearance and installation dimensions
GSY-MO-84ZWX01Y Technical data, appearance and installation dimensions

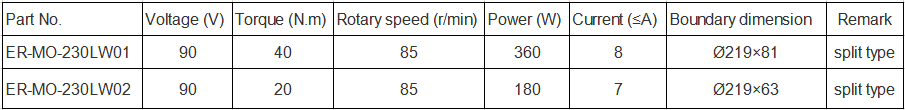

GSY-MO-230LW Technical data
This series of cobalt permanent magnet synchronous motor using rare earth permanent magnet excitation, the sensor for the rotating transformer is closed self-cooled or split type and widely used in automatic control and so on used as actuators in the system, also can be used as a driving element: this series motor has small volume, light weight, a high power density, volume can index is high.Permanent-magnet synchronous motor
Working condition
Environment temperature: -40℃~+70℃
Air relative humidity: ≤95% (25℃)
The salt spray, mold
Satisfy the requirement of GJB789A
4DZYC-1 Technical data, appearance and installation dimensions

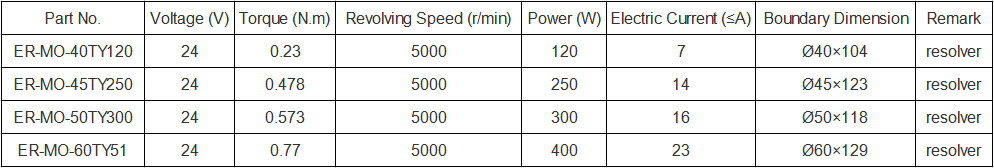

ER40~ER60TY technical data

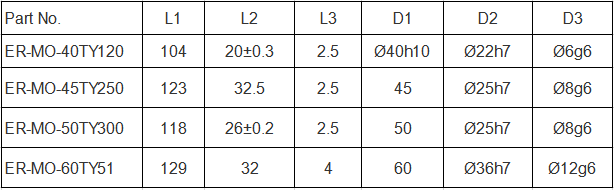

ER40~ER60TY outline overall and installing dimensions
FAQ:
1. What are the quotation methods?
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
If interested in Brushless Electric Motor, pls contact us: info@joinsunny.cn
