Join Sunny provides high reliability and low cost MEMS/quartz flexible accelerometers to the customers worldwide, the quality and after service are proven to be well guaranteed. Join Sunny not only provides the standard acceleration sensor, but also customizes micromechanical/quartz flex accelerometers according to the customers’ special requirements. Just come and get more details with us.
High Precision Navigation MEMS IMU
GSY-MIMU-02 (0.05º/h) Features:
1. Measuring range ±400º/s;
2. Bias instability (Allan variance) 0.05º/h;
3. Light Weight.

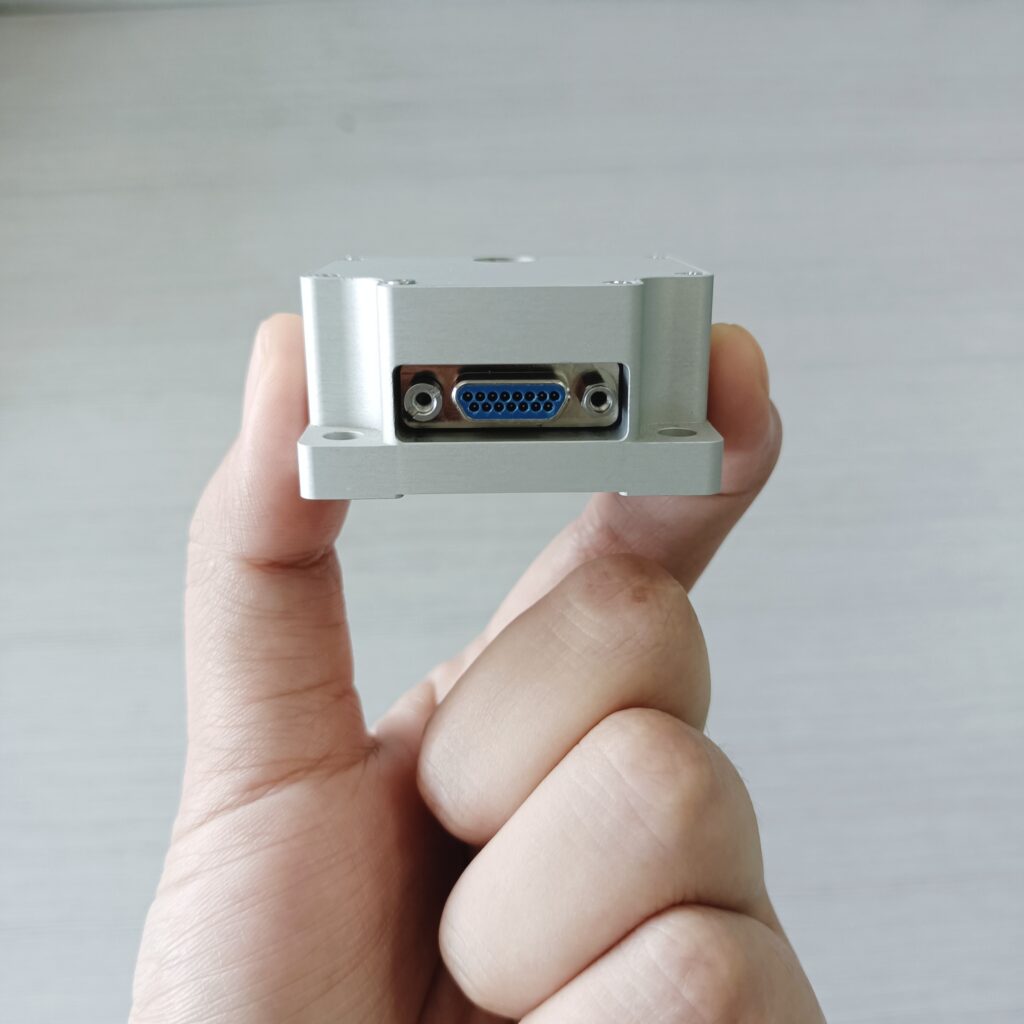

High Precision Stable-control MEMS IMU
GSY-MIMU-03 (<0.3º/h) Features:
1. Measuring range ±400º/s;
2. Bias instability (Allan variance) <0.3º/h;
3. Bias (Full Temp) <9°/h.
Low Cost MEMS Inertial Measurement Unit
GSY-MIMU-04 (≤3°/h) Features:
1. Measuring range ±400º/s;
2. Bias instability ≤3°/h;
3. Small Volume.
North-Seeking MEMS IMU
GSY-MIMU-05
1. 3 axis gyroscope & 3-axis accelerometer;
2. Size: 40 mm×40 mm×38 mm;
3. Gyro bias instability: 0.02 deg/hr.

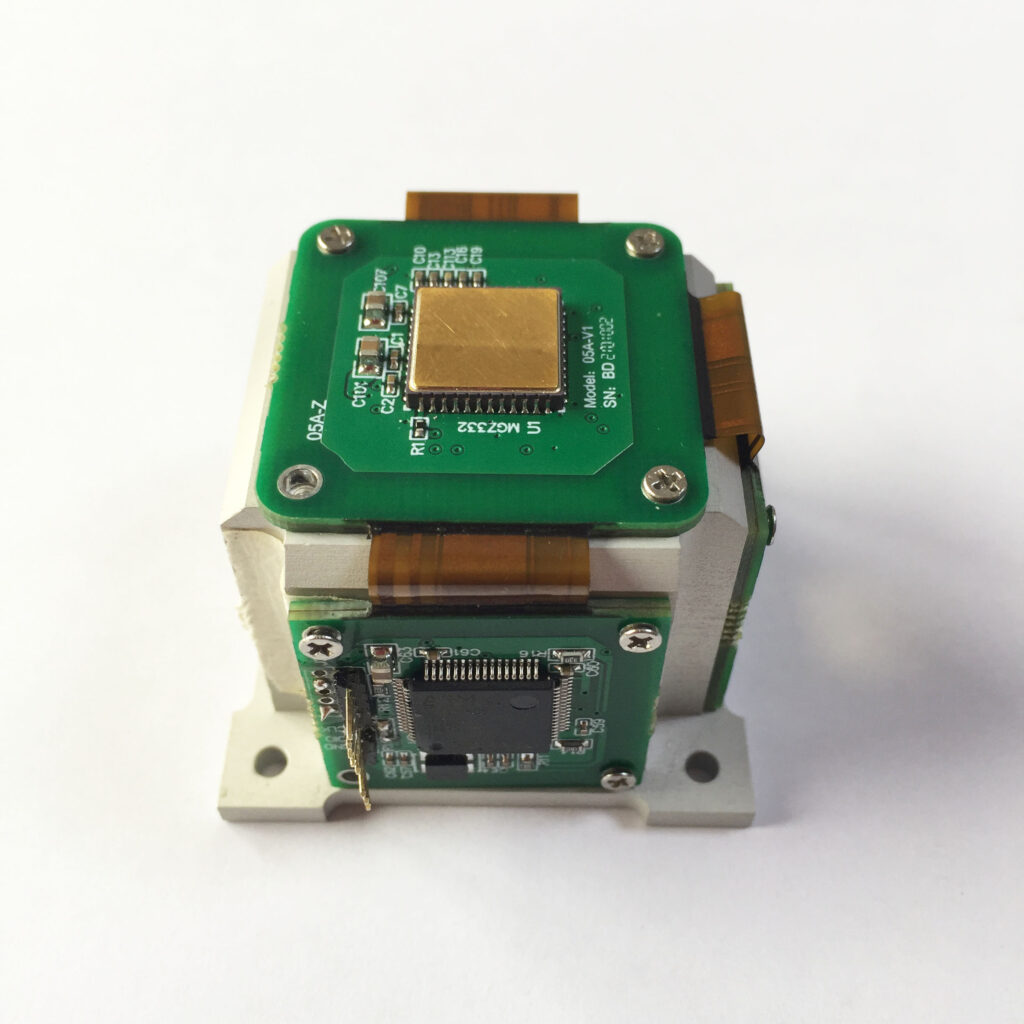

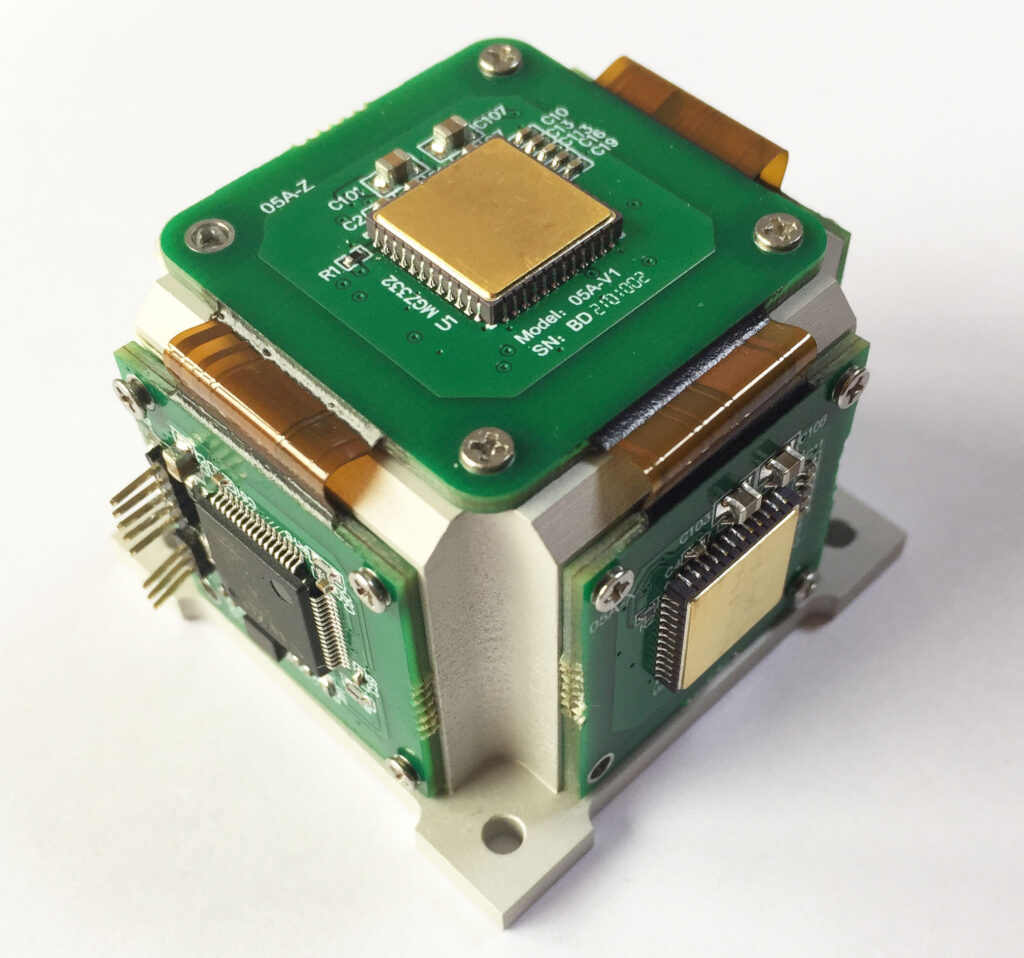

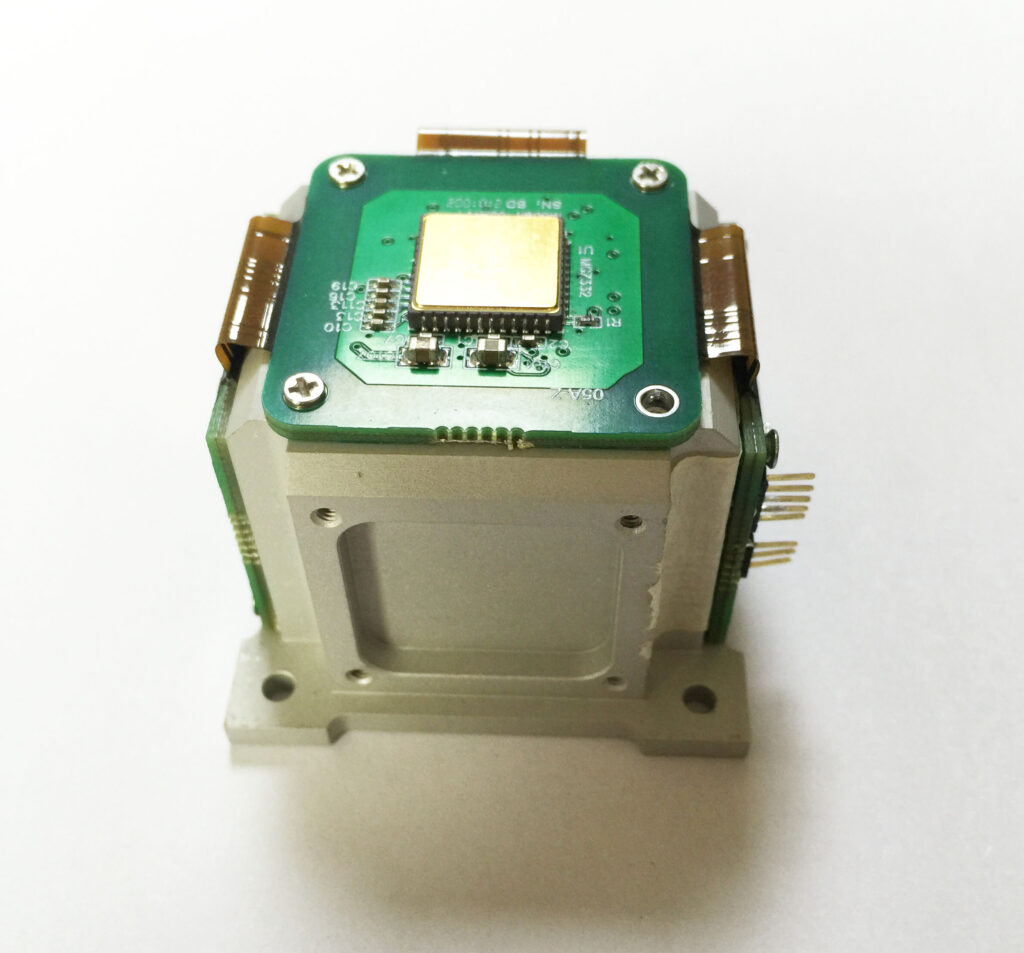

High Performance Navigation MEMS IMU
GSY-MIMU-06
1. 3 axis gyroscope & 3-axis accelerometer;
2. High performance and small size;
3. Gyro bias instability: 0.05 deg/hr.
High Precision Navigation/Stable Control MEMS IMU
GSY-MIMU-07
1. 3 axis gyroscope & 3-axis accelerometer;
2. Size: 40 mm×40 mm×38 mm;
3. Gyro bias instability: <0.3 deg/hr.
Low-cost Attitude-control MEMS IMU
GSY-MIMU-08
1. Gyro bias instability: 3 deg/hr;
2. Low cost and small size;
3. 3 axis gyroscope & 3-axis accelerometer
High Performance MEMS IMU
GSY-MIMU-M01 Features:
1. High accuracy;
2. Low cost;
3. Output in real-time.
GSY-FIMU-50 Minimum FOG IMU (Same performance to KVH 1775)
GSY-FIMU-50:
1. Minimum FOG IMU: F89mm*73mm; similar performance to KVH 1775, LN200;
2. Gyro-Bias stability/repeatability: 0.5°-1°/h, accelerometer-25g;
3. For navigation, control and dynamic measurement.
Low Cost & High Precision FOG IMU (Replace LN200)
GSY-FIMU-60:
1. Tactical FOG inertial measurement unit, dimension, communication interface, power can be customized;
2. Gyro-bias stability/repeatability: 0.1°-0.5°/h, accelerometer-50g.
High Accuracy MEMS IMU
GSY-MIMU-M01A Features:
1. High accuracy;
2. Output in real-time.
High Performance MEMS IMU (16488)

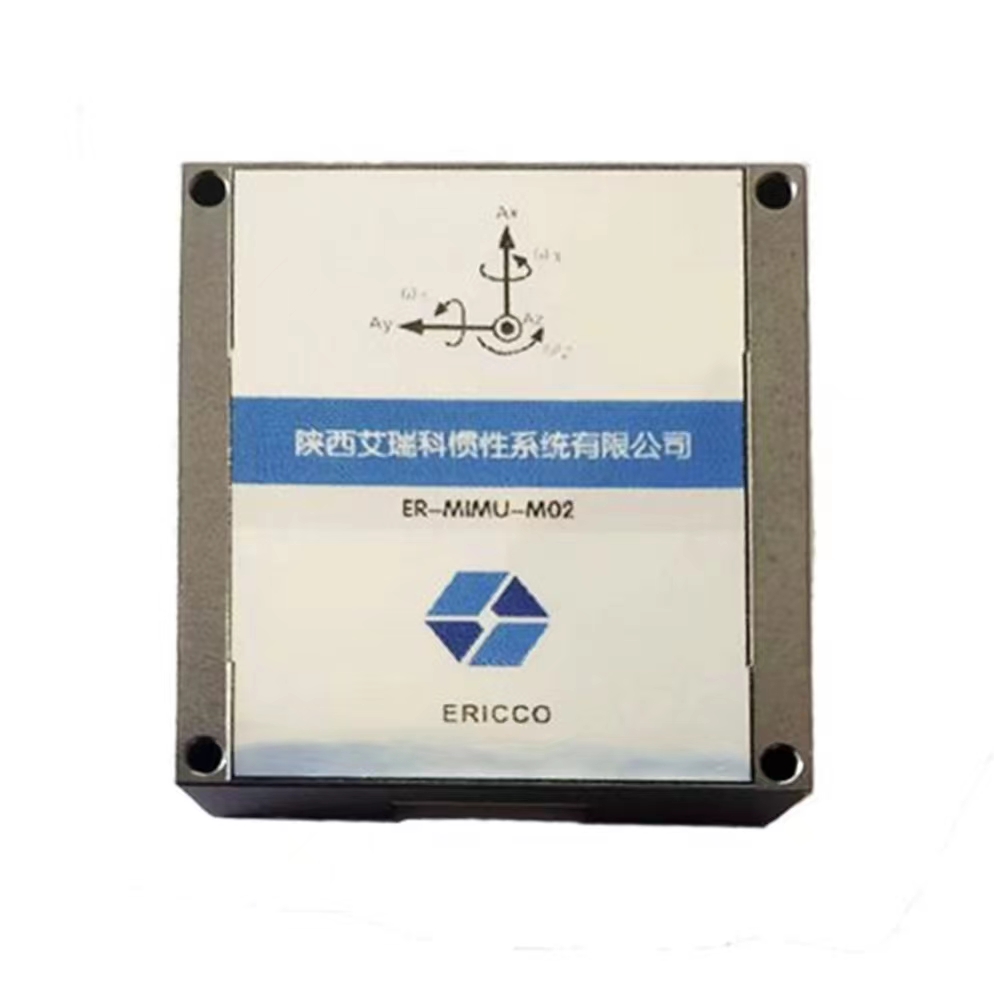

GSY-MIMU-M02 Features:
1. Three-axis digital gyroscope;
2. Three-axis digital accelerometer;
3. High reliability: mean time between failures>20000h.
GSY-FIMU-70 FOG IMU
GSY-FIMU-70:
1. High accuracy FOG IMU unit, customizable solution;
2. Gyro-bias stability/repeatability: 0.05°-0.1°/h, accelerometer-10g.
Large Range FOG IMU
GSY-FIMU-5500 (0.5°/h) Features:
1. High bandwidth, large range;
2. Low power consumption and small volume;
3. The navigation algorithm can be designed according to the user’s needs.
