GSY-OS-07H High Temperature Directional Sensor
Introduction:
The GSY-OS-07H High Temperature Directional Sensor is specially designed to enable high accuracy measurement of the tool face (roll), inclination and azimuth orientation angles in borehole logging and drilling applications.
The product consists of a 3-axis fluxgate magnetometer and a 3-axis accelerometer. It is powered by a wide DC voltage of 10V~36V and is digitally transmitted through a UART asynchronous transmitter. GSY-OS-07H has a temperature compensation function, which can make the system reach the accuracy of ±0.1°, tool face ±0.1° and azimuth angle ±0.3°.
The maximum transmission rate of the magnetometer and accelerometer output is 6 times per second, and the direction angle is 4 times per second. GSY-OS-07H communicates with the outside world through the UART interface. The operator can change the baud rate by setting the data bit in E2 PROM.
You can choose between two communication protocols according to specific requirements:
(1) Binary system: In this system, the user needs to send a data request and DS750 responds with multiple data packets.
(2) ASCII: The ASCII protocol obtains data by sending ASCII characters to GSY-OS-07H. The data returned by GSY-OS-07H is transmitted in ASCII data stream, so it can be easily displayed on the video terminal.
Features:
Temperature: 0~175℃
Accurate measurement under strong vibration environment with 16g peak value (20Hz~100Hz)
Shock resistance 1000g, vibration resistance 20grms
Digital data transmission
With minimum size of Φ31mm×384mm (customized to different needs)
Applications
Directional drilling, geological steering
MWD/LWD

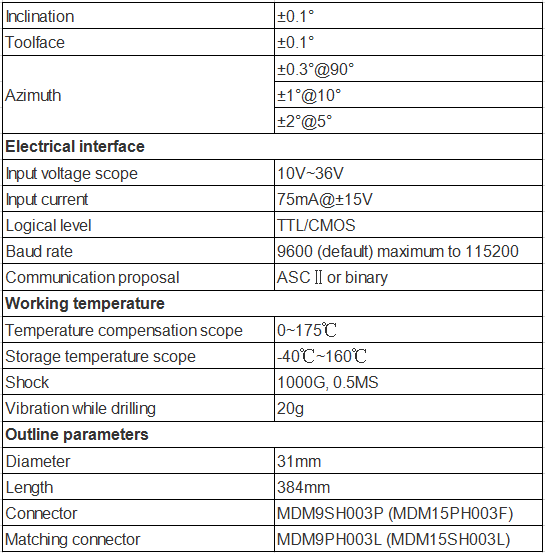

Specifications
FAQ:
1. What are the quotation methods?
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
