GSY-MA-01 Small Measurement Antenna

Introduction

GSY-MA-01 is a high performance survey GNSS antenna which offers superior satellite signal tracking, including BeiDou, GPS, GLONASS and GALILEO. It meets the requirements of high precision and multi constellation compatibility. And it can be used with a variety of receivers, suitable for various occasions.

Features

High Phase Center Stability: a multi-point feeding design to achieve greater phase center stability. It effectively improves measurement accuracy and provides better RTK solution.

Tracking in Challenging Environments: The ability to receive low elevation signals with high gain and wide beam width makes GSY-MA-01 an excellent choice for tracking visible satellites under challenging conditions.

Strong Anti-interference Performance: The antenna LNA features excellent out-of-band rejection performance, which can suppress the electro magnetic interference, providing the stability and reliability of GNSS signals.

Ruggedized Protection: The light weight and small size GSY-MA-01 antenna can lighten the loads of small unmanned vehicles, as well as a standard TNC female connector for easy integration. Its IP67 ruggedized design can protect it from dust and water.

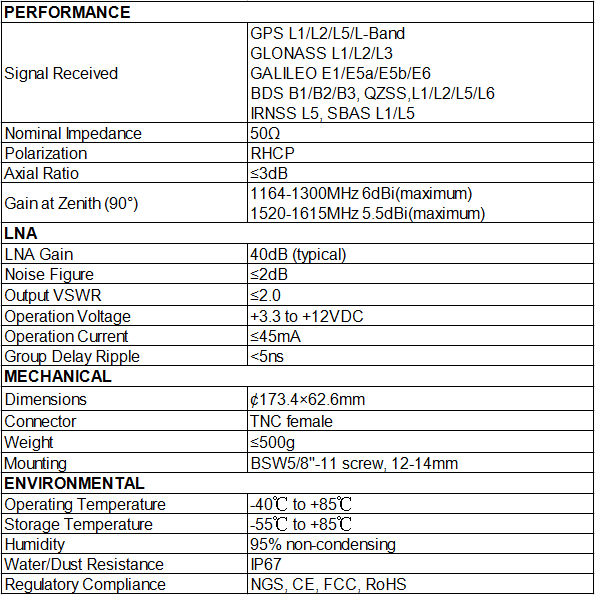

Specifications

FAQ:

1. What are the quotation methods?

If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.

2. Are there any discounts?

After we submit the sample price, if more quantity is needed, we will quote the bulk price.

3. How long will it take to deliver the goods after placing the order?

For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.

4. How to deal with the quality problems?

After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.

If interested in Small Measurement Antenna, pls contact us: info@joinsunny.cn
