Dual Axis Tilt Angle Display Instrument
Introduction
GSY-DDTS-15 is a digital display inclinometer for angle control and measurement in various industrial sites by MCCO sensor. It can be directly used by engineers by means of external inclinometer or built-in inclinometer unit.
GSY-DDTS-15 dual-axis digital inclinometer has fast response speed and stable data. The product is small in size and has a variety of working modes, that is, it can be matched with our inclination sensor and transmission mode (wired or wireless optional). Just like the following, wireless bluetooth<10m, zigbee<250m (optional); 1.5m wired standard (can be customized); RS232<: 25m, RS485 <500m. The product is easy to operate and provides a zero adjustment function, which is convenient for practical applications and industrial fields.
Features
Double row digital display
High resolution adjustable
Output frequency 5~100HZ optional
Built-in rechargeable industrial battery
Wide temperature working -40~+85℃
High seismic performance & GT; 20000g
Zero setting function
A variety of combinations
IP54 protection class
Wired and wireless transmission (optional)
Small volume (140*120*45mm) (Customizable)
Applications
Test the braking performance of motor vehicles
Road platform measurement
Instrument calibration and calibration
Mining machinery, oil logging equipment
Mechanical installation
Tilt detection
Tilt detection of geological equipment
Tilt based monitoring
Various construction machinery angle detection
Inspection of bridges and dams

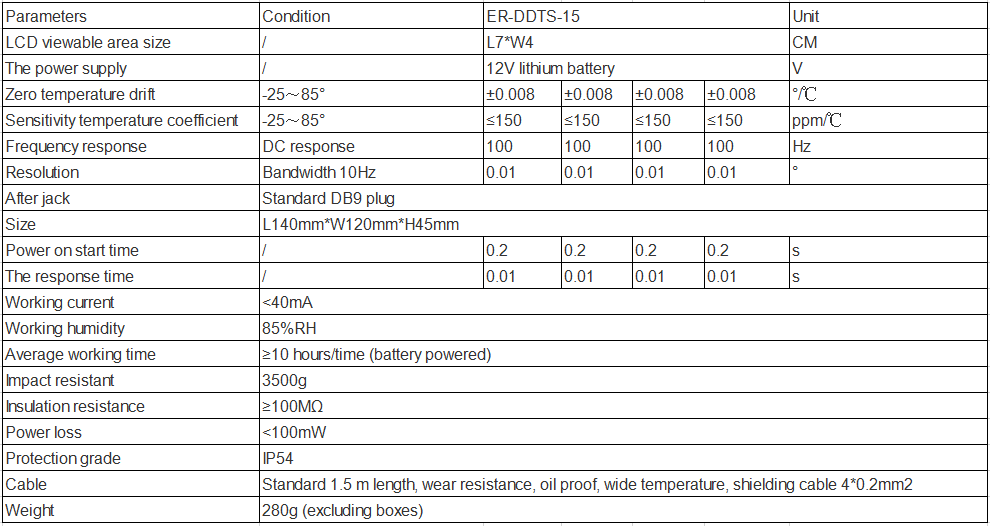

Specifications
Electrical indicators
| Parameters | Conditions | Min | Typical Value | Max | Unit |
| Power Supply
|
DC power supply | 9 | 12 | 36 | V |
| Options | build in rechargeable battery | ||||
| Working current | / | / | 40 | / | mA |
| Working temperature | / | -20 | / | 85 | ℃ |
| Storage temperature | / | -40 | / | 100 | ℃ |
FAQ
1. What are the quotation methods?
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
If interested in Dual Axis Tilt Angle Display Instrument, pls contact us: info@joinsunny.cn
