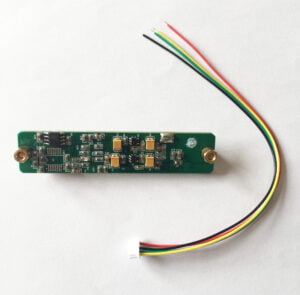

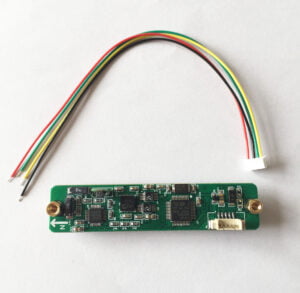

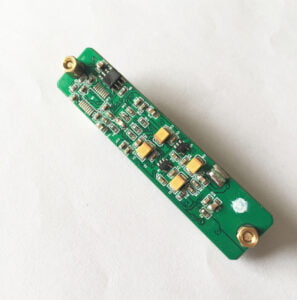

Digital Type Full Attitude 3D Electronic Compass
The GSY-EC-360 is a high precision and full attitude 3D electronic compass that uses hard and soft iron calibration algorithms to provide high precision course information in 360° roll and +/-90° full dip range. It has the characteristics of small volume and low power consumption and is more suitable for the measurement system with power consumption and volume sensitivity.
The precise attitude of the product output carrier can be used in the system of full attitude rotation. This product has hard magnetic, soft magnetic and tilt compensation, compass output after calibration of high precision measurement. The patented triaxial fluxgate, which adopts the CPU to calculate the course in real time and the triaxial accelerometer to compensate the course angle, provides accurate course data even in extremely harsh environments. It also has the features of small size, low power consumption that is widely used in oil logging, antenna pointing, vehicle navigation, attitude system and other fields.
Features
Measurement range 0~360° full attitude
Course accuracy 0.3~0.5°, resolution 0.1°
Output frequency 5~100HZ optional
Input voltage DC 5V
Wide temperature working -40~+85℃
With hard magnetic, soft magnetic and tilt compensation
The baud rate is adjustable from 2400~115200
Working current: 40mA
IP67 protection level
Output RS232/RS485/TTL/MODBUS (optional)
Small volume (72*16*12mm) (customizable)
Specifications
| Compass heading parameter | Heading accuracy | 0.3~0.5° (RMS, Pitch<85°) |
| Resolution | 0.1° | |
| Repeatability | 0.05° | |
| Compass tilt parameter | Pitch accuracy | 0.1° |
| Roll accuracy | 0.1° (Pitch<65°) | |
| 0.2° (Pitch<80°) | ||
| 0.5° (Pitch<86°) | ||
| Dip resolution | 0.01° | |
| Slant range | Pitch+90°; Roll 360° | |
| Calibration | Hard iron calibration | Yes |
| Soft iron calibration | Yes | |
| Tilt calibration | Yes | |
| Physical property | Size | L72xW16xH12 (mm) |
| Weight | 6g | |
| RS232/RS485 interface connector | 5 pin | |
| Interface Characteristics | Startup delay | <50ms |
| Maximum sampling rate | 50 times per second | |
| RS232 communication rate | 2400~19200 baud rate | |
| RS 485 communication | Optional | |
| TTL communication | Optional | |
| Output format | hexadecimal number | |
| Power supply | Support voltage | DC +5V |
| Current (maximum) | 40mA | |
| Working mode | 30mA | |
| Environment | Storage temperature | -40℃~+125℃ |
| Working temperature | -40℃~+85℃ | |
| Vibration resistance | 3000g |
Applications
Individual combat equipment
Satellite solar antenna positioning
Low AGV car
Mining machinery, oil logging equipment
Medical equipment
Gimp leveling
UAV positioning and navigation
Tilt based monitoring
Various construction machinery angle control
Inspection of bridges and dams
FAQ
1. What are the quotation methods?
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
If interested in Digital Type Full Attitude 3D Electronic Compass, pls contact us: info@joinsunny.cn
