GSY-EC-300 Six-Axis High-Precision Electronic Compass
Introduction of accurate digital compass
GSY-EC-300 Six-Axis high precision compass is a high precision, full pose 3D compass. The precise attitude of the GSY-EC-300 output vector can be used in systems with full attitude rotation. This product is with hard and soft magnetic and tilt compensation, high precision measurement of output value after compass calibration.
Features of accurate digital compass
Accuracy: 0.2° (RMS)
– 40 ° C~+85 °C wide temperature work
Small size: L107xW38xH25 (mm)

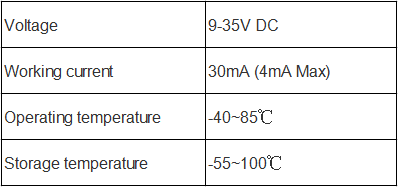

Supply voltage: 9-35V DC
Resolution: 0.01°
Roll pitch accuracy: 0.1°
With hard magnetic, soft magnetic and tilt compensation
RS232/RS485/TTL
Applications of precision digital compass
Satellite tracking
Petroleum geological survey
Optical range finder
GPS-assisted navigation
Individual combat equipment
Ocean test
Underwater navigation
Mechanical control
Specifications of high precision compass
| Compass heading parameter | Heading accuracy | 0.2 RMS (Horizontal use) |
| <0.5 RMS (Pitch<30°) | ||
| Resolution | 0.01° | |
| Repeatability | 0.05° | |
| Compass tilt parameter | Pitch accuracy | 0.1° |
| Roll accuracy | 0.1° | |
| Resolution | 0.01° | |
| Tilt range | 30° | |
| Compass tilt parameter | Hard magnetic calibration | have |
| Soft magnetic calibration | have | |
| Limited tilt user calibration | have | |
| High-precision magnetometer calibration | have | |
| Physical characteristics | Package size | L102xW20xH20 (mm) |
| Bare board size | L75xW30.5xH10 (mm) | / |
| Weight | 100g | |
| Output form | RS232/485/TTL interface | |
| Interface characteristics | Start delay | <3s |
| Maximum output frequency | 50Hz | |
| RS-232 communication rate | 2400 to 115200 baud rate | |
| Surroundings | Anti-vibration performance | 2000g |
FAQ:
1. What are the quotation methods?
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
