Digital Type High Precision Contactless Angle Sensor
Introduction
GSY-AS-26 angle sensor is combined with an embedded microprocessor and a numerical control angle secondary calibration device. Program calibration conversion can achieve high accuracy, low temperature drift, and low power consumption. Digital output has RS232, RS485, TTL, MODBUS (optional), reaching high resolution: 0.015°, high precision: 0.05°, output ratio: 100HZ.
The magnetic sensitive angle sensor has the characteristics of non-contact, long life, high resolution, low temperature drift, good linearity, fine reset, high frequency response, multiple protections, anti-interference, anti-vibration, and anti-shock characteristics, that is suitable for water, oil, gas, vibration, shock, especially harsh industrial environments, are also ideal alternatives to contact angle sensors (such as conductive plastic potentiometers).
Features
Sampling rate: 1K HZ
Full range accuracy 0.05°
Output RS232, TTL, RS485, MODBUS optional
Wide voltage input DC 9~36V
Wide temperature working -40~+85℃
Angular resolution is 0.015°
High vibration resistance >20000g
IP66 protection level
Range 0~360°(optional)
Linearity is 0.15%~0.5%
Applications
Railway gauge
Satellite solar antenna positioning
Towed motor control
Mining machinery, oil logging equipment
Medical equipment
Gimp leveling
Liquid valve: angle actuators
Angle-based control
Various construction machinery angle control
Textile machinery

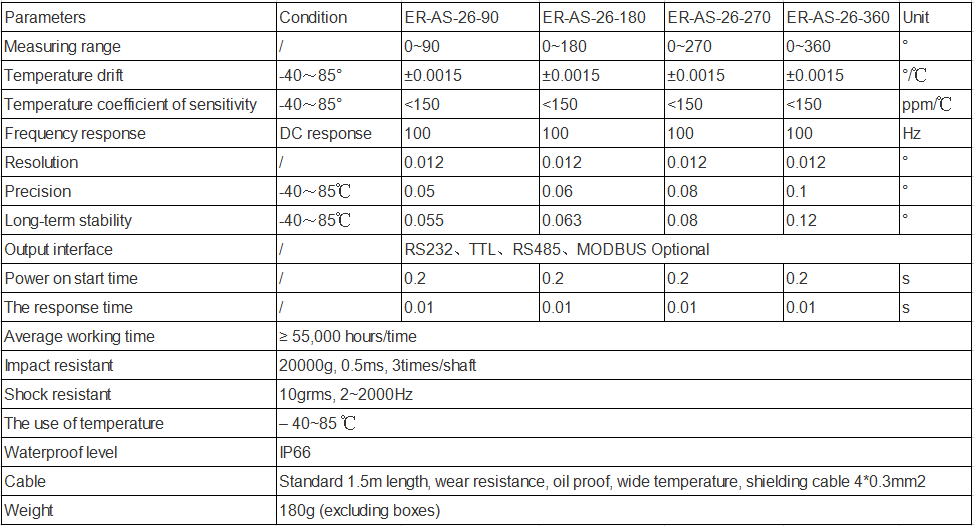

Specifications
Electrical information
| Parameters | Condition | Min | Typical Value | Max | Unit |
| The power supply voltage | / | 9 | 12 | 36 | V |
| Reverse power protection | / | / | 20 | / | V |
| Signal reverse protection | / | / | 20 | / | V |
| The output load | Resistivity | / | 2 | / | KΩ |
| Working temperature | / | -40 | / | 85 | ℃ |
| Storage temperature | / | -55 | / | 100 | ℃ |
FAQ
1. What are the quotation methods?
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
2. Are there any discounts?
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
3. How long will it take to deliver the goods after placing the order?
For sensors, parts and modules: in stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
4. How to deal with the quality problems?
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
If interested in Digital Type High Precision Contactless angle Sensor, pls contact us: info@joinsunny.cn
